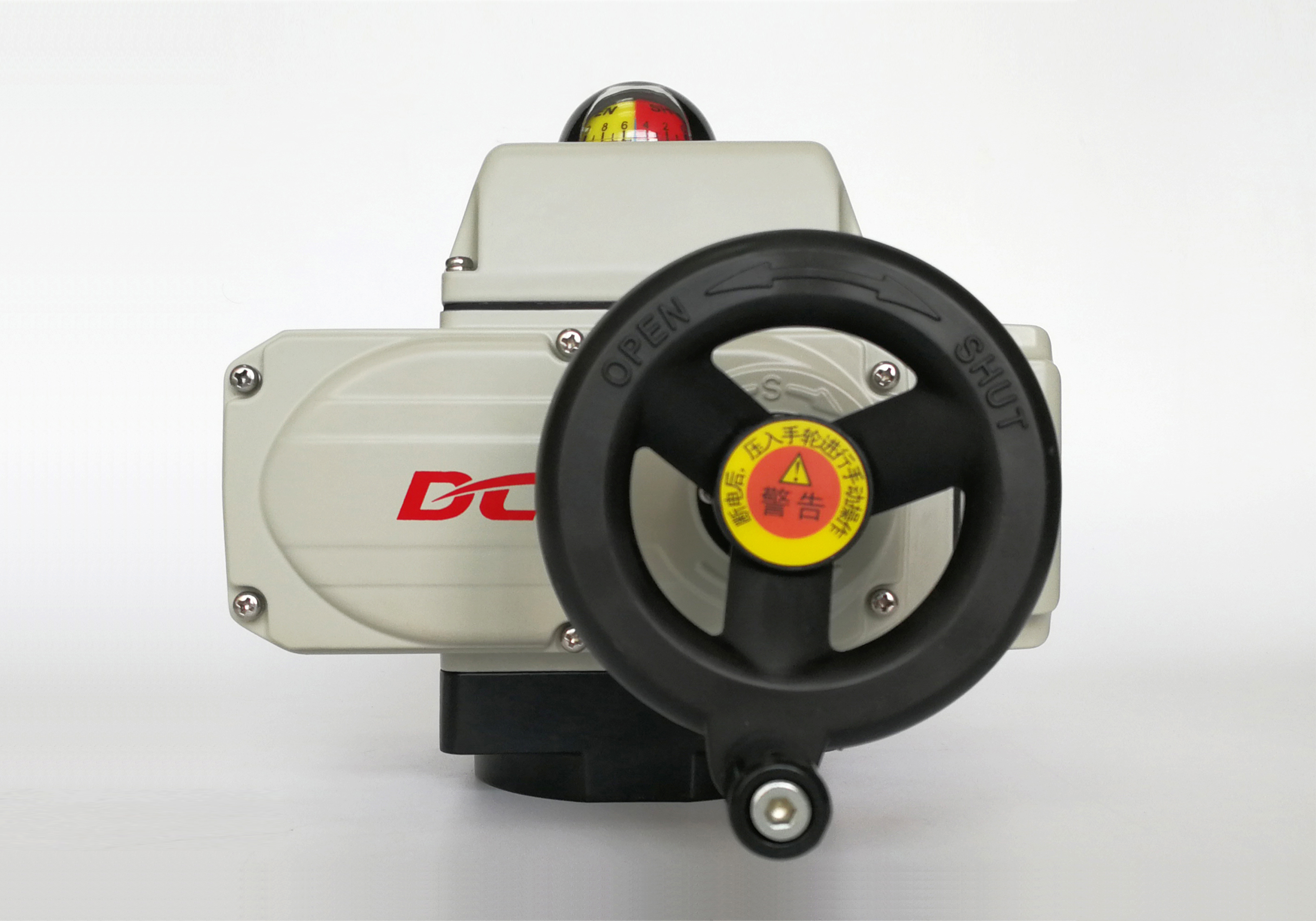

CE CSA 30S 100Nm Ball Valve Butterfly Valve Quarter Turn Actuator

Non-ventilated reversible induction type motor equipped compact actuator

Features

• 1/4 turn operation with mechanical limits
• Automate ball valve and butterfly valve to adjust or cut off flow
• All bronze alloy worm sector gear is very durable and resistance to high force friction
• Over 10000 time full open and close life cycles with full rated load with duty rate 80%
• Compact size for limit space with weather proof IP67/type 4X aluminum alloy housing
• Corrosion protection robust aluminum alloy with thermally bonded polyester coating
• All metal gear train with self-locking worm gear
• Visual valve position indicator
• Two electric limit switches to confirm valve position, no additional brake required
• Allen handle manual override
• CSA listed/UL complied/CE marked/RoHS 3.0 tested

Description

DCL compact electric actuators are widely applied in the HVAC industry, commonly matched with butterfly valves for regulating indoor temperature, air volume, water flow and hydraulic balance in building automation systems.

To achieve high-precision temperature regulation, DCL integrates heavy-duty motors with an 80% duty cycle into these actuators, supporting continuous and high-frequency modulation. Their ultra-long service life simplifies aftermarket maintenance and substantially cuts long-term operational costs.

Built for harsh working conditions, the actuators allow both indoor and outdoor installation. An optional anti-condensation heater is also available to prevent moisture and corrosion damage.

For global safety and reliable performance, all DCL HVAC actuators undergo stringent testing per UL and CSA standards and hold full CSA certification. They are also CE and RoHS compliant, with compliance verified by SGS.
