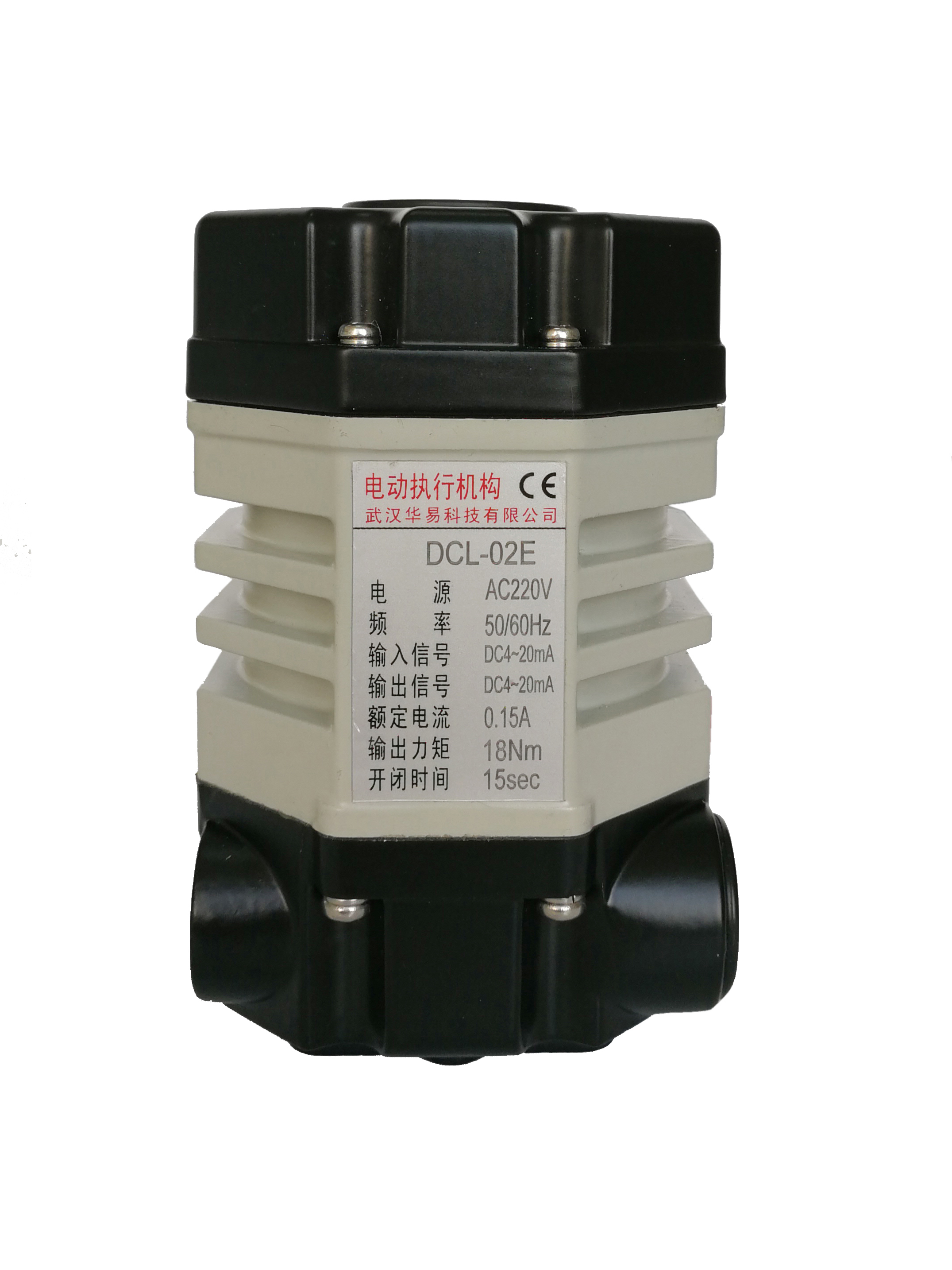

CE CSA AC24V 15S 18Nm Ultra Small Quarter Turn Electric Actuator

  • CE CSA AC24V 15S 18Nm Ultra Small Quarter Turn Electric Actuator
Lugar de origem WUHAN, CHINA
Marca DCL
Certificação CE/ROHS/CSA/IP67
Número do modelo DCL-02G
Quantidade de ordem mínima 1 unidade
Detalhes da embalagem Caixa/palete
Tempo de entrega 7 dias úteis
Termos de pagamento D/P, T/T, Western Union, MoneyGram
Habilidade da fonte 5000 unidades/mês
Detalhes do produto
Tempo/torque padrão 15s/18nm Tempo/torque opcional 7s/9nm 60s/18nm
Peso total 1,2kg Fonte de energia 24VDC / 12VDC opcional
Potência do motor 8w Temperatura ambiente -25 ℃ ~+55 ℃ / -13 ° F ~+131 ° F.
Ângulo de instalação 360° Grau de proteção IP67 NEMA4/4X
Deixe um recado
Descrição de produto
CE CSA AC24V 15S 18Nm Ultra Small Quarter Turn Electric Actuator

DCL-02 dimension and parameters.pdf

Features
  • Quarter turn standard, turning angle smaller than 360° optional
  • Rare earth material permanent magnet brush motor, perfect robustness, very low temperature rise during operation
  • Watertight housing cover with IP67 grade for indoor and outdoor use
  • Two more limit switches to confirm valve position
  • Self-locking when power off
  • Strong gear train with soft nitriding metal gears
  • Manual operation with handle
  • CE marked/RoHS 3 tested/CSA listed
Description

The DCL-02G is custom-engineered for high-security industrial sites that adopt 12VDC or 24VDC safety power supply standards. Its dedicated low-voltage design fundamentally mitigates electrical safety risks, delivering maximum protection for on-site operating personnel.

It is equipped with a built-in rare-earth permanent magnet motor, which produces far higher magnetic flux than ordinary ferrite motors. This enables the actuator to output outstanding torque and achieve high power density while maintaining an ultra-compact structure. In addition, the motor features excellent load stability performance. Unlike conventional DC motors that easily suffer speed deviation under changing loads, the DCL-02G sustains steady running speed amid varying load conditions. Such high operational precision enables smooth valve regulation, effectively reduces equipment vibration, and keeps heat generation at a low level—ensuring stable, efficient and durable operation even in the harshest working conditions.

Performance Parameters
Performance Parameters



Type DCL-02 DCL-MZZ(Multiple turns)
Power DC24V AC24V AC110V AC220V DC24V
Motor Power 8W 6W 6W 6W 20W
Rated Current 0.7A 1.3A 0.3A 0.15A 1.1A
Standard Time/Torque 15S/18Nm 18Nm
Optional Time/Torque 7S/9Nm 60S/18Nm 　
Turning Angle or turns 0～900 3r/min
Available Control Circuit Type G Type of A,B Type of A,B ,E , 　
Total Weight 1.2kg
Insulating Resistance 100MΩ/250VDC 100MΩ/500VDC 100MΩ/250VDC
Withstand Voltage Class 500VAC 1 minute 1500VAC 1 minute 500VAC 1minute
Protection Class IP67
Installation Angle 3600 at any angle
Electric Interface 7-core cable for connection
Ambient Temperature -25～+55℃
Fuse 2A 3A 1A 1A 2A

CE CSA AC24V 15S 18Nm Ultra Small Quarter Turn Electric Actuator 0

CE CSA AC24V 15S 18Nm Ultra Small Quarter Turn Electric Actuator 1

About Us:

Dynamic Corporation Limited is a high-tech, stockholding enterprise with independent export authority, specializing in the research, development, manufacture, and sales of electric actuators, electric valves, and automation control systems. The flagship DCL Series Electric Actuator is distinguished by its compact structure, refined appearance, intelligent control, outstanding performance, superior quality, and ease of operation.

DCL series actuators find wide application across industries such as petroleum, chemical, power generation, metallurgy, energy, paper making, water treatment, food & brewing, shipbuilding, as well as building automation systems. These products are highly trusted and favored by customers. Over years of field use, clients in diverse sectors have confirmed that DCL actuators consistently deliver excellence in reliability, longevity, after-sales support, and overall quality.
