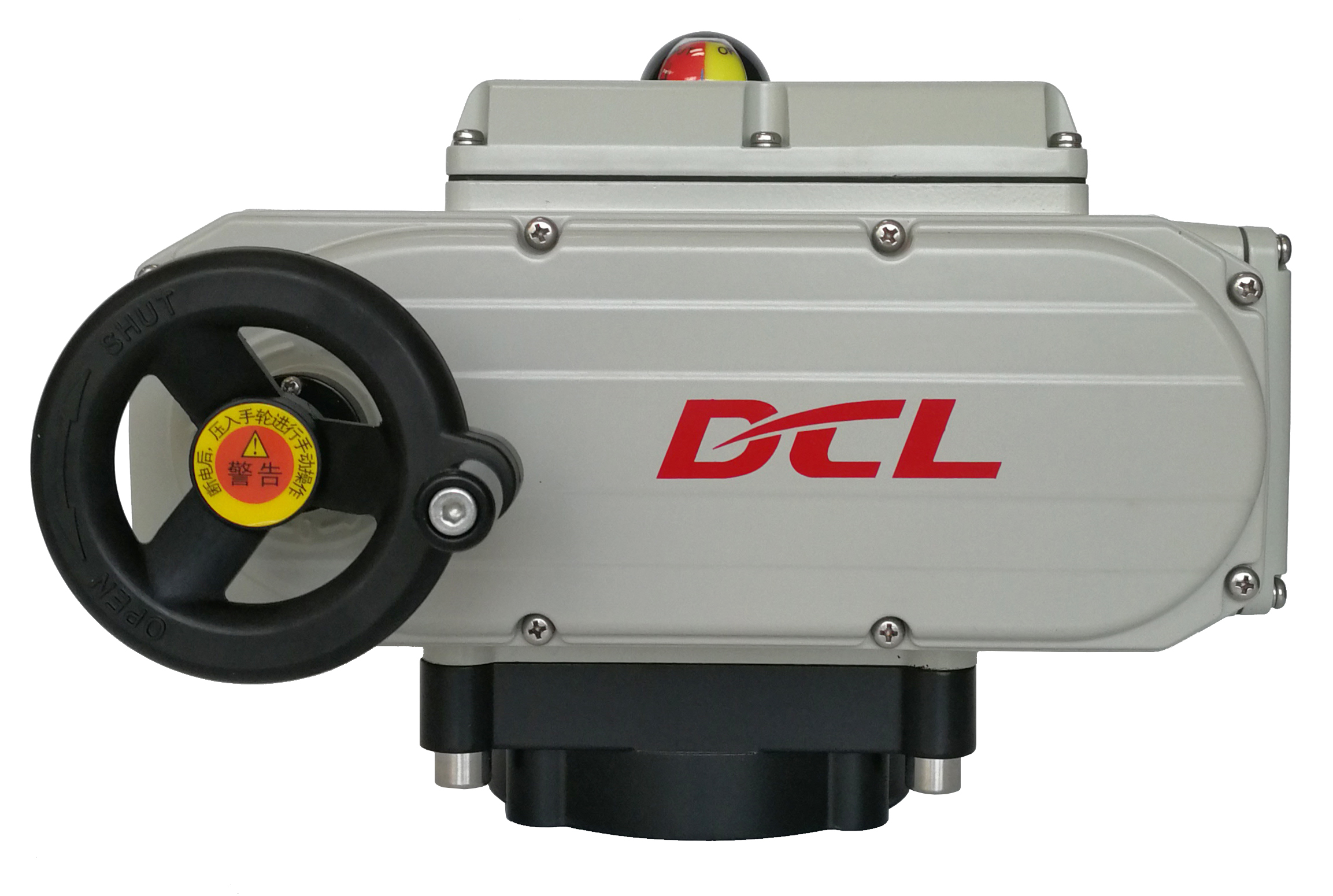

ISO5211 AC110V 30S 1000Nm Quarter turn electric actuator

• The smallest size and most compact design in torque range from 1000Nm to 2500Nm
• Extra-large super hard copper alloy final stage worm gear to reduce force and abrasion of gear
• Double row chain from gear box to worm gear stem ensure torque transfer strength
• Strong motor equipped to make sure high start torque beyond rated torque in 10% under rated voltage
• Over 10000 times full stroke life cycle test with full rated load under duty rate 80%
• Match up to DN650 butterfly valve, DN350 ball valve and DN1200 ventilation butterfly valve and flap valve.
• Manual override with wrench or de-crutched handwheel
• CSA certified per UL standard/CE marked/RoHS 3.0

The DCL high-torque electric actuator boasts an ultra-compact footprint and lightweight design, thanks to its innovative gear train configuration. This optimized structure reduces the size of the front-stage gears while incorporating an oversized final-stage worm gear, ensuring robust resistance to frequent high-torque operation. Ideal for actuating large-diameter valves in space-constrained installations, this actuator delivers exceptional performance in demanding industrial settings.

Furthermore, within the torque range of 1000 Nm to 2500 Nm, the DCL high-torque electric actuator offers superior cost-effectiveness compared to other actuators of equivalent quality, courtesy of its reduced volume and weight. As a result, it has gained growing acceptance and popularity among clients in sectors such as steel, power generation and cement manufacturing—industries that traditionally favored large-scale actuator solutions.
