Adjustable Explosion-proof AC DC 200Nm 30S 40W Compact Actuator

  • Adjustable Explosion-proof AC DC 200Nm 30S 40W Compact Actuator
Lugar de origem WUHAN, CHINA
Marca DCL
Certificação CE/ROHS/CSA/IP67
Número do modelo Modelo DCL E
Quantidade de ordem mínima 1pc
Detalhes da embalagem Carton/palete
Tempo de entrega 7 dias úteis
Termos de pagamento D/P, T/T, Western Union, MoneyGram
Habilidade da fonte 5000pcs/mês

Contacte-me para amostras grátis e cupons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Se você tiver alguma dúvida, oferecemos ajuda on-line 24 horas por dia.

x
Detalhes do produto
Fonte de energia 24VAC/110VAV/220VAC/380VAC Energia motora 6W a 140W
Torque padrão 50nm a 2500nm/442in.lbs a 22125in.lbs Tempo padrão 20 a 75s
Sinal de entrada 4-20MADC/1-5VDC/2-10VDC Sinal de saída 4-20MADC
Grau de proteção IP67 NEMA4/4X Peso total 1,2 kg a 20 kg
Temperatura ambiente -25 ℃ ~+55 ℃ / -13 ° F ~+131 ° F. Ângulo de instalação 360 °
Deixe um recado
Descrição de produto

Adjustable type electric compact actuator with basic error ≤ 1%


Features

  • Quarter turn operation proportional to input signal
  • High performance EMC with EFT, ESD and high voltage surge tested for control pack
  • Heavy duty motor with thermal overload protection
  • Valve position indicator/flat indicator or convex indicator available
  • Output 4-20mA signal for valve position
  • Standard ISO5211 multi-flange valve mounting
  • Full potted multi-function smart control pack resistance to vibration and moisture
  • World leading anti-interference ability, control accuracy and sensitivity
  • Self-calibrating and problem self-checking function
  • Unique integral motor/control pack/ housing design with very small size
  • Weather proof aluminum alloy enclosure with thermally bonded polyester coating
  • C3 level corrosion resistance with 1000 hours salt spray test
  • Manual override with wrench or handwheel
  • CSA Certification per UL and CSA standard/CE marked/RoHS 3.0 passed
  • Optional functions such as heater,modbus,fail-safe return and so on


Description

The DCL modulating type electric actuator adopts a fully potted resin-encapsulated control pack design. For intrusive electric actuators, a fully potted control pack offers superior reliability and safety compared to an exposed control board. Without potting protection, the electronic components on the board are easily damaged or shorted due to accidental contact during wiring or inspection, leading to a higher failure rate of both the control board and the actuator.

In addition, the resin encapsulation provides excellent protection in harsh environments, such as high humidity or strong vibration during transportation. It also offers effective electromagnetic shielding, enhancing the actuator’s resistance to interference.

Our control pack has passed stringent EMC and reliability tests, including:

  • Surge test: 2500 V

  • EFT (Electrical Fast Transient) test: 4000 V

  • ESD (Electrostatic Discharge) test: 4000 V

  • 85/85 endurance test: Continuous operation at 85 °C and 85% relative humidity for over 600 hours with stable performance

The actuator has successfully passed comprehensive EMC tests (EFT, ESD, and surge) and is CSA certified, fully compliant with UL and CSA standards.


Specification


Type DCL-05E DCL-10E DCL-20E DCL-40E DCL-60E DCL-100E DCL-200E DCL-300E
Power AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC110/220 AC110/220 AC110/220
Output Torque 50Nm 100Nm 200Nm 400Nm 600Nm 1000Nm 2000Nm 3000Nm
Acting Time 20S 30S 30S 30S 45S 30S 90S 110S
Turning Angle 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90°
Motor Power 10W 25W 40W 90W 90W 120W 140W 140W
Rated Current 1.50/0.24/ 0.16A 2.12/0.57/ 0.35A 3.65/0.65/ 0.37A 6.80/1.12/ 0.57A 6.80/1.18/ 0.60A 1.93/0.94A 1.75/0.96A 1.75/0.98A
Total Weight 2.5kg 4.5kg 9kg 9.5kg 10kg 19kg 19.5kg 20kg
Input Signal 4-20mADC,1-5VDC,2-10VDC
Output Singal 4-20mADC
Basic Error not more than ±1%
Reciprocating Error not more than 1%
Dead Space 0.5%-5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator ≤1%
Insulating Resistance AC24V:100MΩ/250VDC AC110/220V:100MΩ/500VDC
Withstand Voltage Class AC24V:500VAC 1minute AC110/220V:1500VAC 1minute
Protection Class IP67
Installation Angle 360°at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line
Ambient Temperature -20℃~+55℃
Optional Function Over-torque protector/Dehumidify Heater/Passive contact switch/Dome indicator/Handle
Remark Any other input or output signal needed, please specified in purchase order.

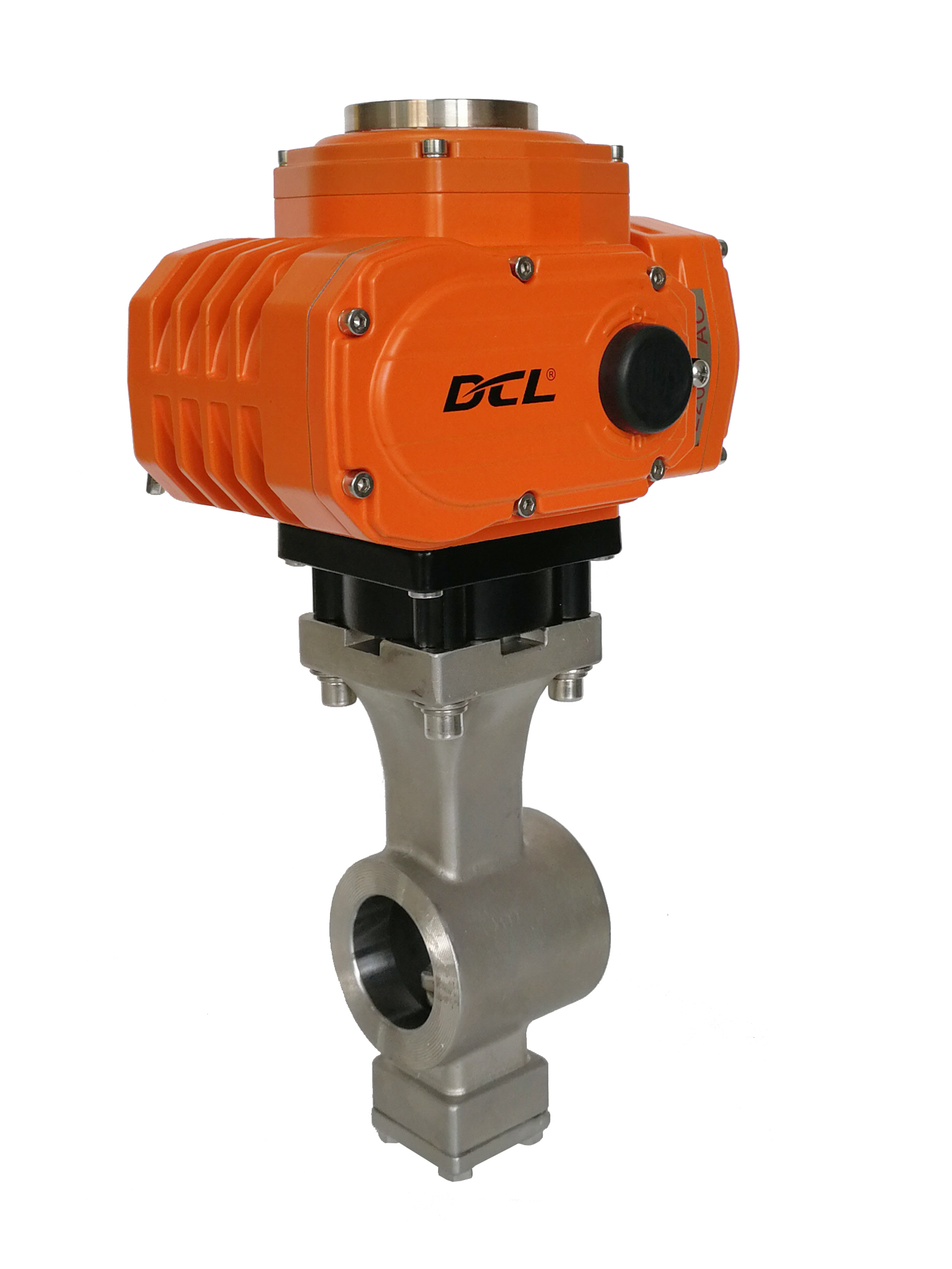

Adjustable Explosion-proof AC DC 200Nm 30S 40W Compact Actuator 0

Adjustable Explosion-proof AC DC 200Nm 30S 40W Compact Actuator 1
